Cold Pressure Welding Sheet Winder Copper Foil Winding Machine AC380V 50Hz

Brand Name : STT

Model Number : BRJ300-2

Certification : CE

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Name : Copper foil winding machine

Max. Foil Width : 300mm

Winding Speed : 0 ~ 35 rpm

Foil Thickness : 0.2 ~ 3.0mm

Power : 5.5KW

Power Supply : AC380V 50Hz

Machine Color : as requested

Warranty : 12 months

Contact Now

Factory Direct Sales Cold Pressure Welding Sheet Winder Copper Foil Winding Machine

Description of foil winding machine BRJ300-2

Copper foil winding machine BRJ300-2 is a professional foil conductor winder, which can be used to wind copper foils or aluminium foils and the wound foil coils can be used to make cast resin transformers and other similar products. The copper foil winding machine is provided with cold pressure unit to weld aluminium foil and copper bus bar together or copper foil and aluminium bus bar together. The copper foil winding machine can wind one or two layers of foils and wind one or two layers of insulation paper. With PLC control system and HMI, the copper foil winding machine can be operated easily.

Main components of copper foil winding machine BRJ300-2

1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. Cold pressure welding unit

Technical parameters of copper foil winding machine BRJ300-2

Typical standard specifications of copper foil winding machine BRJ300-2 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Foil width:	100 ~ 300mm
Finished Coil Shape:	Oval, circle, and rectangular etc.
Conductor Foil Material:	Copper or Aluminum
Al Foil Thickness:	0.3 ~ 3.0 mm
Cu Foil Thickness:	0.2 ~ 2.0 mm
Foil Decoiler:	2 pcs
Foil Decoiler Length:	350 mm
Foil Decoiler Diameter Range:	Ø400 ~ 520mm
Maximum Coil Weight:	750 KG
Pressing Roller:	2 set
Adjusting Speed Mode:	Stepless adjustable
Rotating Speed:	0 ~ 35 rpm
Insulation Decoiler Number:	2 pcs
Insulation Decoiler:	350mm
Insulation Decoiler Shaft:	Expandable (pneumatic open/close action)
Programming Type:	PLC
Touch Screen:	10inch (254mm)
Counting Range:	0 ~ 9999.9

Cold Pressure Welding Sheet Winder Copper Foil Winding Machine AC380V 50Hz

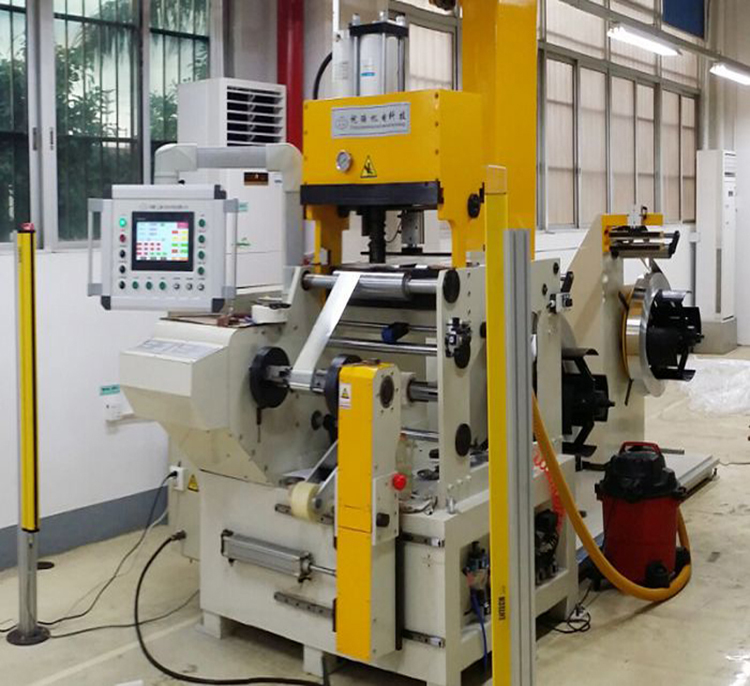

Fig 1: Copper foil winding machine BRJ300-2's front view

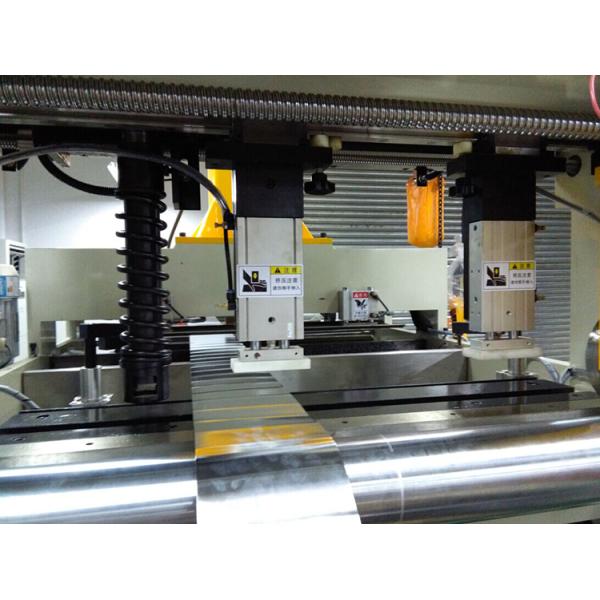

Fig 2: Copper foil winding machine BRJ300-2's cold pressure welding unit
